Chipping Hammers

BUILT TO LAST

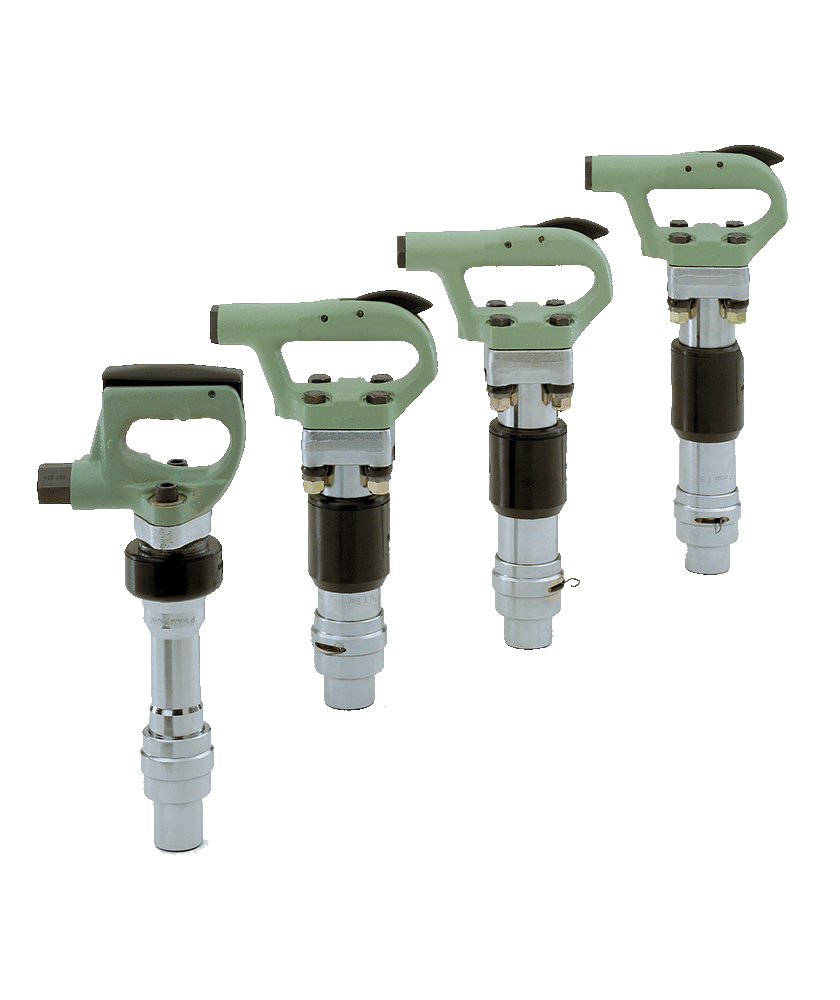

The Sullair Chipping Hammer is designed for rugged dependability.

  • Four bolt backhead for reduced handle breakage
  • D-handle for an easy grip—even with gloves
  • Limited parts warranty

Models vary by region. Please contact your Sullair sales representative for more details.

Jump To:

Specs Contact Us
Chipping Hammers
CFM
CFM

Flow

30 - 34 cfm
.85 - .96 m³/min

  • Four bolt backhead for reduced handle breakage
  • D-handle for an easy grip—even with gloves
  • Minimal lubrication required
  • Rotatable exhaust deflector directs exhaust air away from the operator
  • Standard oval return retainers
  • Choice of stroke and bushing
    • 2" , 3" and 4" with either .680 round or .580 hex bushings
  • Limited parts warranty
    • Two years on the handle and cylinder
    • One year on all other parts*
    • Hassle Free Warranty:
      • Sullair will ship a new replacement tool for a defective tool during the first six months of warranty

*Excludes retainer and retainer springs

  • User-friendly, screw-on ball retainer—quick and easy way to change steel
  • Air inlet bushings—3/8" NPT and 7/8"-24 internal thread

Standard Oval Return Lock Spring Retainer

  • MCH-2
    • Air Consumption: 34 cfm
    • Blows per Minute: 3600
    • Bore & Stroke: 1 1/8" x 5"
    • Weight: 16 lbs
    • Length: 14"
  • MCH-3
    • Air Consumption: 33 cfm
    • Blows per Minute: 2280
    • Bore & Stroke: 1 1/8" x 5 3/4"
    • Weight: 18 lbs
    • Length: 15 1/4"
  • MCH-4
    • Air Consumption: 30 cfm
    • Blows per Minute: 1800
    • Bore & Stroke: 1 1/8" x 4 1/4"
    • Weight: 18 lbs
    • Length: 16 1/2"

Screw-On Ball Retainer (No springs required)

  • MCH-3S
    • Air Consumption: 33 cfm
    • Blows per Minute: 2280
    • Bore & Stroke: 1 1/8" x 3 3/4"
    • Weight: 18 lbs
    • Length: 15 1/4"
  • MCH-4S
    • Air Consumption: 30 cfm
    • Blows per Minute: 1800
    • Bore & Stroke: 1 1/8" x 4 1/4"
    • Weight: 18 lbs
    • Length: 16 1/2"
