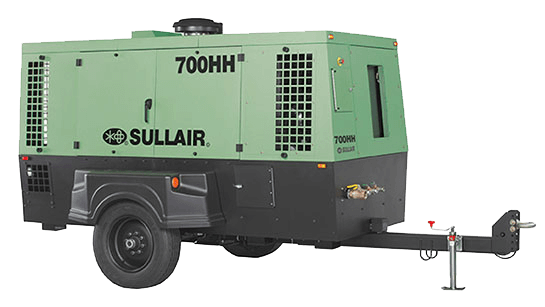

700HH Portable Air Compressor

The Sullair 700HH single axle rotary screw portable air compressors deliver 700 cfm. Unit is designed for reliability and total accessibility. Powered with a choice of a Caterpillar or John Deere engine. Mounting option is 2-wheel, single axle or less running gear.  The compressors features a pneumatic inlet valve and 0 to 100% capacity control.

Models vary by region. Please contact your Sullair sales representative for more details.

Jump To:

Specs Contact Us
700HH Portable Air Compressor

Flow

700 cfm
19.8 m³/min

Pressure

175 psi
12.1 bar

Power

275 hp
205 kW
  • Removable modular canopy
  • Adjustable height hitch
  • E-Z lube axle
  • Complete fluid containment
  • High/Low pressure selector valve
  • Curbside instrument panel
  • Battery disconnect switch
  • Idle warm-up switch
  • Rocker type start switch
  • Emergency stop
  • Protective shut-down switches
  • Fuel/Water separator
  • Two-stage air filters safety element
  • 0 to 100% capacity control
  • Pneumatic inlet valve
  • AWF® compressor fluid
  • Durable powder coat finish
  • Wide track
  • Galvanneal sheet metal
  • Recessed tail lights
  • Lockable service doors
  • SSAM—Shutdown System and Annunciation Module
  • Filtration for instrument quality air
  • Aftercooler
  • Special paint
  • Spark arrestor
  • Fuel level gauge
  • Air filter maintenance indicators
  • Block heater
  • Ether starting aid

    Options may vary by model, please contact your local distributor for more information on options available.



Model Specifications

 700HH (T2)

700HH (T3)

ACTUAL DELIVERY - CFM( M3/MIN)

700 (19.8)

700 (19.8)

RATED PRESSURE - PSIG (BAR)

175 (12.1)

175 (12.1)

PRESSURE RANGE, MIN - PSIG (BAR)

80 (5.5)

80 (5.5)

PRESSURE RANGE, MAX - PSIG (BAR)

175 (12.1)

175 (12.1)

ENGINE MAKE & MODEL

JD6068 (T2)

CAT C7 (T3)

AVAILABLE POWER - BHP (KW)

275 (205)

275 (205)

FUEL TANK CAPACITY -GAL (L)

112 (424)

112 (424)

FUEL CONSUMPTION 100% LOAD - GPH (L/H)

13.5 (51.1)

14.1 (53.4)
