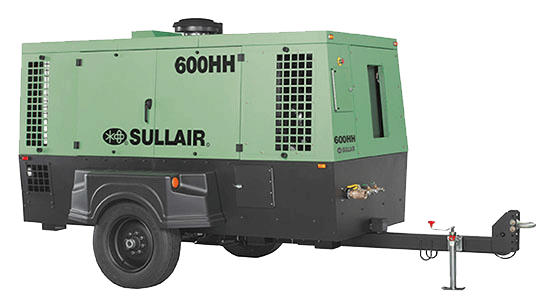

600HH Portable Air Compressor



The Sullair 600HH single axle rotary screw portable air compressors deliver 600 cfm. Unit is designed for reliability and total accessibility. Powered a choice of a Caterpillar or John Deere engine. Mounting option is 2-wheel, single axle or less running gear. The compressors features a pneumatic inlet valve and 0 to 100% capacity control.





Models vary by region. Please contact your Sullair sales representative for more details.

Jump To:

Specs Contact Us
600HH Portable Air Compressor

Flow

600 cfm
17 m³/min

Pressure

200 psi
13.8 bar

Power

275 hp
205 kW
  • Removable modular canopy
  • Adjustable height hitch
  • E-Z lube axle
  • Complete fluid containment
  • High/Low pressure selector valve
  • Curbside instrument panel
  • Battery disconnect switch
  • Idle warm-up switch
  • Rocker type start switch
  • Emergency stop
  • Protective shut-down switches
  • Fuel/Water separator
  • Two-stage air filters safety element
  • 0 to 100% capacity control
  • Pneumatic inlet valve
  • AWF® compressor fluid
  • Durable powder coat finish
  • Wide track
  • Galvanneal sheet metal
  • Recessed tail lights
  • Lockable service doors
  • SSAM—Shutdown System and Annunciation Module





  • Filtration for instrument quality air
  • Aftercooler
  • Special paint
  • Spark arrestor
  • Fuel level gauge
  • Air filter maintenance indicators
  • Block heater
  • Ether starting aid

    Options may vary by model, please contact your local distributor for more information on options available

Model Specifications

600HH (T2)

600HH (T3)

ACTUAL DELIVERY - CFM( M3/MIN)

600 (17)

600 (17)

RATED PRESSURE - PSIG (BAR)

200 (13.8)

200 (13.8)

PRESSURE RANGE, MIN - PSIG (BAR)

80 (5.5)

80 (5.5)

PRESSURE RANGE, MAX - PSIG (BAR)

200 (13.8)

200 (13.8)

ENGINE MAKE & MODEL

JD6068 (T2)

CAT C7 (T3)

AVAILABLE POWER - BHP (KW)

275 (205)

275 (205)

FUEL TANK CAPACITY -GAL (L)

112 (424)

112 (424)

FUEL CONSUMPTION 100% LOAD - GPH (L/H)

13.5 (51.1)

14.1 (53.4)
