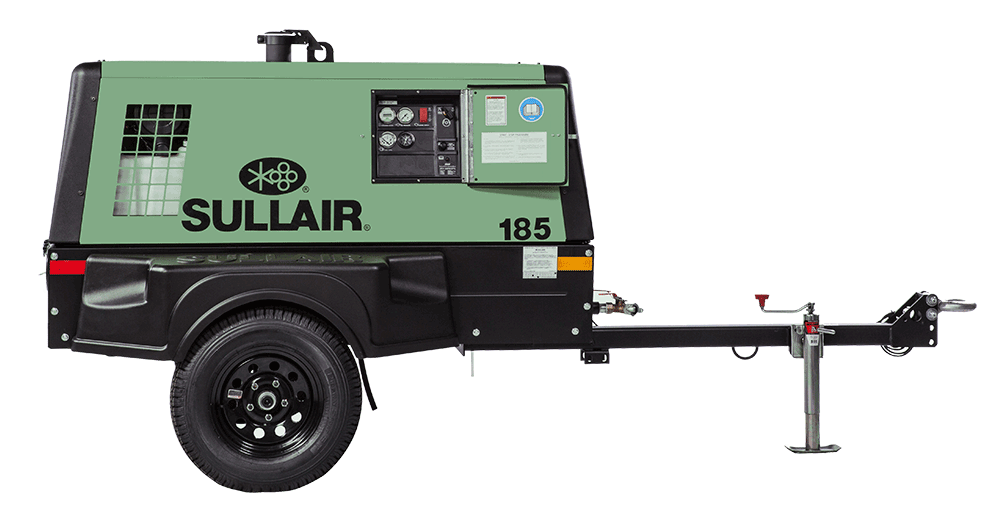

185 iT4 Portable Rotary Screw Compressor

THE WORKHORSE OF OUR ELITE MOBILE FLEET

The Sullair 185 is fully optimized and ready to hit the road.

  • Corrosion resistant enclosure to help stand up to the most rugged jobsites
  • Curbside instrument panel
  • AWF® Fluid designed for all weather conditions

Models vary by region. Please contact your Sullair sales representative for more details.

Jump To:

Specs Contact Us
185 iT4

Flow

185 cfm
5.2 m³/min

Pressure

100 psi
7 bar

Power

61 hp
45.5 kW
  • Clam Shell Canopy
    • Canopy opens fully with gas assist springs
    • Serviceable components within easy reach for simplified maintenance
  • Corrosion Resistant Enclosure
    • Galvanneal sheet metal with composite end caps and fenders
    • Stainless steel hinges and latches, plated fittings and hardware
    • Aluminum instrument panel door
    • Durable, baked-on powder coat finish
  • Highway Towable Running Gear
    • Independent rubber torsion suspension
    • Axle offers convenient wheel bearing lubrication through zerk fittings
    • 3˝ square drawbar
    • Adjustable height hitch
    • Screw jack with pad
    • Transport security chains
  • Curbside Instrument Panel
    • Hinged, padlockable cover
    • Mechanical air pressure gauge and hour meter
    • Rocker type engine start switch with emergency stop
    • Idle warm-up valve
    • Glow plug starting aid
  • SSAM — Shutdown System & Annunciation Module
    • Shutdown with annunciator light for high compressor temperature, high engine coolant temperature, low engine oil pressure and engine underspeed
  • Capacity Control System
    • Pneumatic inlet valve and unloaded starting
    • Color coded control lines
    • Heated controls to prevent freezing
  • Two-Stage Dry Type Air Filters
    • Separate filters for engine and compressor
  • Dual Fuel Filtration System
    • Primary fuel/water separator with transparent bowl and water drain
    • Final filter with drain
  • AWF Compressor Fluid
    • All-weather, all-climate fluid
  • Warranty
    • 1 year standard warranty
    • 2 year standard air end warranty
    • 5 year or 10,000 hour air end warranty when continuously serviced at the recommended intervals with Sullair AWF® compressor fluid and filters
    • Diesel engine warranty applies — contact Sullair for more information
  • DLQ package—Less Running Gear



General

Actual Delivery cfm (m³/min): 185 (5.2)
Rated Pressure psig (bar): 100 (7)
Pressure Range min/max (bar): 80/125 (5.5/8.6)

Engine

Make & Model: CAT C2.2 (iT4)
Operating Speed rpm: 2800
Available Power bhp (kW): 61 (45.5)
Displacement in³ (l): 134 (2.2)
Cooling System Capacity gal (l): 2.5 (9.5)
Engine Oil Capacity qts (l): 11.2 (10.6)
Fuel Tank Capacity gal (l): 20 (75.7)
Electrical System Voltage: 12

Performance

Fuel Consumption at Full Load gph (l/h): 3.4 (12.9)
Maximum Operating Altitude ft (m): 11,000 (3353)

Compressor

Service Valves No/Size in (mm): 2 / ¾ (19)
Compressor Oil Capacity gal (l): 3 (11.4)

DPQ Package — Includes Running Gear
Working weight lbs (kg): 2130 (966)
Dry weight lbs (kg): 1990 (903)
Length in (mm): 130.8 (3322)
Width in (mm): 59.2 (1504)
Height in (mm): 53.9 (1369)
Track Width in (mm): 50.9 (1294)
Axle Rating lbs (kg): 3700 (1678)
Tire Size: ST175/80D13


DLQ Package — Less Running Gear
Working weight lbs (kg): 1885 (855)
Dry weight lbs (kg): 1745 (792)
Length in (mm): 72.5 (1842)
Width in (mm): 40.7 (1034)
Height in (mm): 44.5 (1130)
