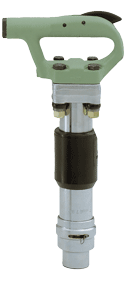

MCH-4S Chipping Hammer

Sullair also offers a screw-on ball retainer as an alternative to our spring retainer.

Our four-bolt backhead design reduces handle breakage and eliminates the common problem of a threaded handle-to-barrel connection coming loose, damaging the handle and internal parts. The strong “D” configuration provides a comfortable, sure grip even for a gloved hand.





Features and products may vary, please contact your local distributor for more information on tools available in your region.

Models vary by region. Please contact your Sullair sales representative for more details.

Jump To:

Specs Contact Us
MCH-4S Chipping Hammer
CFM
CFM

Flow

Cubic Feet Per Minute
30 cfm
m³/min

  • Weight 20 3/4 lbs.
  • Length 18"
  • Bore & Stroke 1 1/8" x 4 1/4"
  • Impact Rate 1800 blows/min.
  • Air Consumption 30 cfm (0.8 m3/min, 14 l/s)
  • Air Inlet Diameter 3/8" NPT or 7/8-24
  • Shipping Weight 22 1/8 lbs.
  • Chuck Size .680 round, .580 hex

  • Four Bolt Backhead
  • D-Handle
  • Minimal Lubrication Required
  • Smoother Operation
  • Choice of Bushings
  • Universal Ball Type Screw-On Retainer
  • Rotatable Exhaust Deflector
  • Two Air Inlet Bushings
  • Limited Parts Warranty

  • 8' Whip Hoses with Fittings
